Ciarra 60cm Campanas extractoras inclinadas CBCB6750-B
- Campana extractora de vidrio de 60cm, máx. 350 m³/h
- Sistema de escape y recirculación de aire
- 3 velocidades, filtro de carbón incluido
- Iluminación LED, control con pulsador de bronce
- Eje telescópico regulable en altura
- Garantía: 24 meses
- Consejo: Reemplazar el filtro de carbón cada 2-4 meses
Tiene preguntas? Preguntar a un experto
3-7 días laborables
5-10 días hábiles
Frequently bought together
CIARRA CAMPANAS DE PARED
| Número de modelo | CBCB6750-B |
| Peso neto | 8,2 kg |
| Color principal | negro |
| Material campana extractora | pintura negra y vidrio |
| Dimensiones del producto | 595 mm * 335 mm * 695 ~ 1075 mm |
| Dimensiones de embalaje | 640 mm * 370 mm * 400 mm |
| Altura ajustable) | 695 mm-1075 mm |
| Nivel de potencia acústica | 63dB (A) |
| Calificación de eficiencia energética | A |
| Clase de eficiencia fluidodinámica | C |
| Voltaje / Frecuencia | 220 V-240 V / 50 Hz |
| Poder | 72W |
| Potencia del motor | 70W |
| Poder de la lámpara | 1x2W |
| Clase de eficiencia de iluminación | A |
| Consumo de energía medido en modo de parada | 0 |
| Controlar | Pulsador |
| Detalles del paso de potencia | Etapa 1: 188m³/h 49dB Etapa 2: 244m³/h Etapa 3: 323m³/h 63dB |
| garantía | 24 meses |
CIARRA Campanas De Pared Viene Con Los Siguientes Artículos En La Caja:
| Campana extractora en ángulo de 1 * 60 cm |
| 1 × libro manual |
| 1 × bolsa de tornillos |
| 1 × soporte de pared |
| 1 × tubo de escape de plástico |
| 2 × tubos de decoración de chimenea |
| 2 × placas de fijación de chimenea |
Customer Reviews

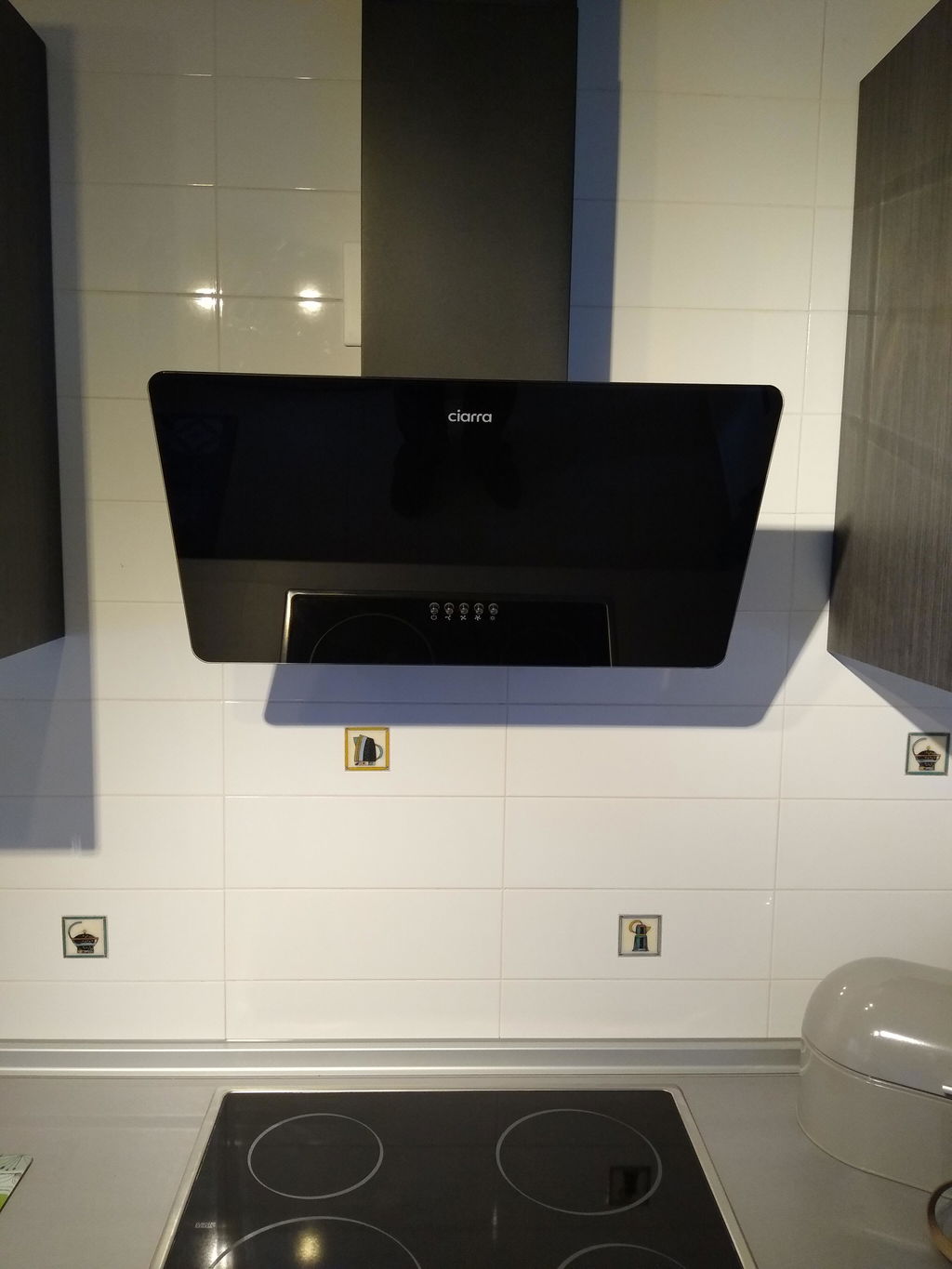

Report on Ciarra CBCB6750-B Cooker Hood
Item: Fixing points
The fixing points shown on the enclosed template makes the unit to be too low for use when cooking. The template shows the wall bracket mounting holes to be 667.1 mm – 767.1 mm above the Cooktop.
We have an electric cooktop and therefore this dimension is detailed as 667.1 mm. As the height results in the cooker hood being very low, we initially mounted the bracket at the 767.1 mm height, which again was too low. Subsequently we mounted the bracket 90mm higher (857.1 mm) which is now an ideal height.
Item: Ducting hose (Aluminium Exhaust Pipe)
It is almost impossible to secure the ducting hose onto the cooker hood using the cable ties provided. The reason being that by hand the collar of the hose cannot be tightened so that it is secure on the exhaust port of the cooker hood. Upon inspection, the reason why the ducting pipe couldn’t be secured adequately by hand is that a plastic collar insert that keeps the cooker hood end of the hose in shape has an overlap secured with adhesive which prevents the hose collar to be reduced to the size of the cooker hood port (need to close by circa 5 mm in diameter). We removed circa 35 mm of this overlap and adhesive and then the hose fitted securely.
Item: Chimney fixing screws
The fixing screws for the chimney are poor and do not tighten adequately onto the brackets. We purchased better self-tapping screws which secured the chimney correctly.

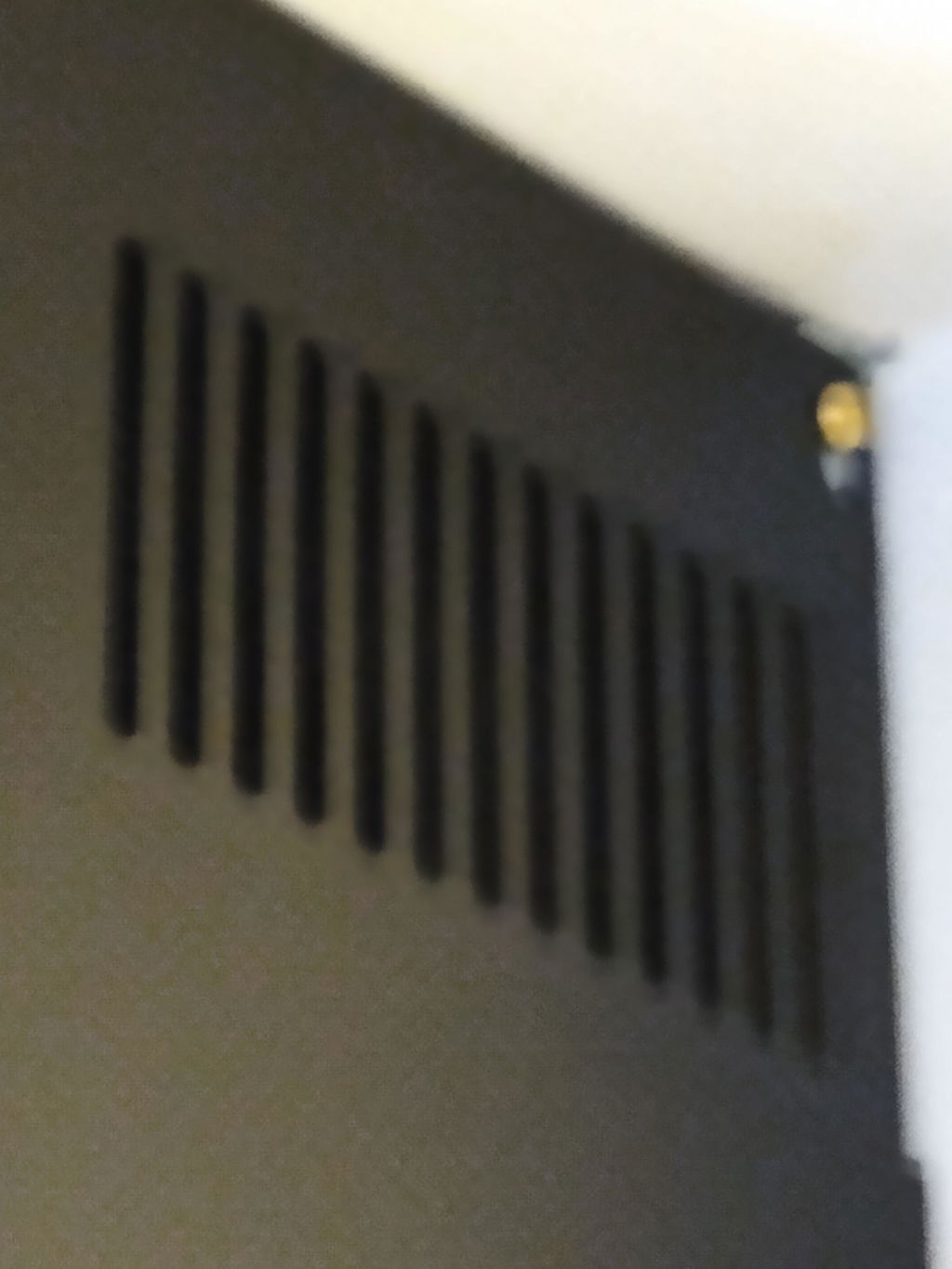

Item: Chimney for use with exhaust hose.
The upper part of the chimney only has fixing screws at the vent ends and therefore the aluminium hose can be viewed through these vents. It would be an advantage to have fixing holes at both ends so that the upper chimney can be fitted without the vents uppermost. We have put black blanking covers inside the upper chimney over the vents so that the aluminium pipe cannot be seen.
Item: Angle of front plate when using hood.
Due to the fitment of the control switch assembly, the front plate has at an angle closer to the hood and is not perpendicular. It would be a great improvement if the front plate had a pull open /pull again to close support arm which would allow the front plate to be positioned optimally for operation.
Excelentes productos. ¡¡¡Gracias!!!
El vidrio de la campana no se sostiene, se cierra. Se aflojan los tornillos y se termina cayendo la campanas ( vidrio) por lo que dudo que pueda aspirar)
Buena calidad y buenas instrucciones
